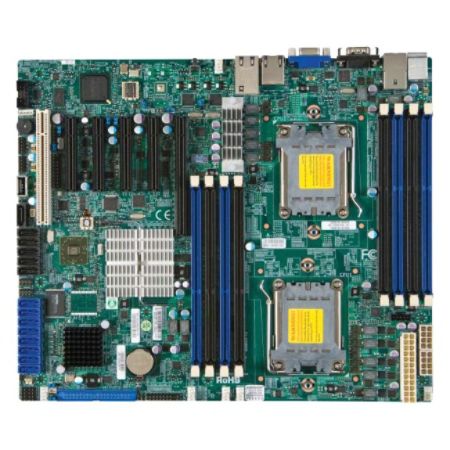

Supermicro H8DCL-iF Server Motherboard - AMD SR5690 Chipset - Socket C32 LGA-1207 - Retail Pack Item # 378162
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
378162
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Product Details
| Item # | 378162 |
| Manufacturer # | 10548625 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Onboard LEDs Header | Yes |
| Power Supply Supported | EPS12V |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Certifications & Standards | FCC |
| Sleep / Wake Up | Keyboard wake up, wake on LAN (WOL) |
| Compatible Processors | Opteron 4000 series |
| Number of Network (RJ-45) Ports | 3 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x USB 2.0 - Type A ¦ 4 x USB 2.0 ¦ 1 x serial |
| Registered or Buffered | Registered, buffered |
| Graphics Controller Manufacturer | Matrox |
| Storage Interfaces | AMD SP5100 : SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 ¦ ATA-133 -connectors: 1 x 40pin IDC - 2 devices |
| Total Processor Supported | 2 |
| Total Number of PCI Express Slots | 5 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| VGA | Yes |
| Max Processors Qty | 2 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Dedicated Video Memory | 16 MB DDR2 SDRAM |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Network Controller | 2 x Intel 82574L |
| Processor Technology | HyperTransport 3.0 Technology |
| Number of USB 2.0 Ports | 2 |
| Package Type | Retail |
| PS/2 Port | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | Socket C32 |
| Chipset Model | SR5690 |
| Graphics Controller Model | G200eW |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 2.0 |
| Number of PCI Slots | 1 |
| Number of PCI Express x8 Slots | 4 |
| Total Number of Onboard USB Ports | 5 |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| RAID Levels | 0; 1; 1+0 |
| Processor Supported | Opteron Hexa-Core; Opteron Quad-Core |
| BIOS Features | DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support |
| Total Number of USB Ports | 2 |
| Serial Port | Yes |
| Number of PCI Express x4 Slots | 1 |
| Onboard Audio Header | Yes |
| width | 12 in |
| package contents | H8DCL-iF Server Motherboard; 2 x Retention; 6 x 57.5cm SATA Flat Cable; 1 x 15.7" USB 2.0 Cable; 1 x 9 PIN Serial Port Cable; 1 x 8" ATA 133/100/66 3-Drop Cable; 1 x Driver Disk; 1 x I/O Shield |
| Number of Memory Slots | 8 |
| depth | 10 in |
| Product Name | H8DCL-iF Server Motherboard |
| manufacturer | Supermicro Computer, Inc |
| Max Size | 128 GB |
| Maximum Memory | 128 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
| controller type | Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 5 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Graphics Controller | Matrox MGA G200eW |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Number of Total Expansion Slots | 6 |
| Chipset Manufacturer | AMD |
| Graphics Controller Memory | 16 MB |
| Memory Technology | DDR3 SDRAM |
| form factor | ATX |
| warranty length | 1-year limited |
| Onboard S/PDIF Header | Yes |
| model name | H8DCL-iF |
